S3 Ingestion

S3 Ingestion lets you pull files from Amazon S3 or S3-compatible storage (MinIO, NCP Object Storage, etc.) directly into your AI Data Foundry project.

This document covers S3-specific topics only. For behavior common to all sources — file ingestion, automatic schedules, job monitoring — see the Ingestion Overview.

Prerequisites

You will need the following information to connect an S3 source.

Item	Description
Bucket name	The name of the S3 bucket where files are stored (e.g., `my-documents-bucket`)
Region	The AWS region where the bucket is located (e.g., `ap-northeast-2`). The form defaults to `ap-northeast-2` — change it to match your actual bucket region
Access Key ID	Access Key ID of an IAM user with access to the S3 bucket
Secret Access Key	The Secret Access Key corresponding to the Access Key above

IAM Permissions

The IAM user used for the connection needs at least the following permissions.

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "s3:HeadBucket",
        "s3:ListBucket",
        "s3:GetObject"
      ],
      "Resource": [
        "arn:aws:s3:::my-documents-bucket",
        "arn:aws:s3:::my-documents-bucket/*"
      ]
    }
  ]
}

Replace my-documents-bucket with your actual bucket name.

s3:HeadBucket — Verifies the bucket exists during connection test
s3:ListBucket — Lists files and folders in the bucket
s3:GetObject — Downloads files during ingestion

Connecting an S3 Source

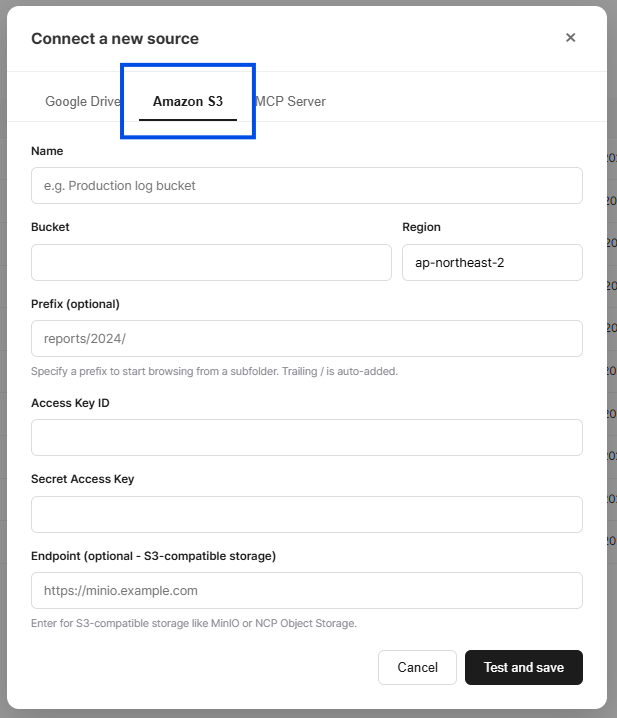

In the Connect a new source dialog, select Amazon S3 as the source type and fill in the fields.

Field	Required	Description
Name	Yes	A friendly name for this source (e.g., "Production log bucket")
Bucket	Yes	S3 bucket name
Region	Yes	AWS region (form default: `ap-northeast-2` — change to match your bucket)
Prefix	No	Start browsing from a specific folder (e.g., `reports/2026/`). A trailing `/` is automatically appended
Access Key ID	Yes	IAM Access Key ID
Secret Access Key	Yes	IAM Secret Access Key
Endpoint	No	Only needed for S3-compatible storage

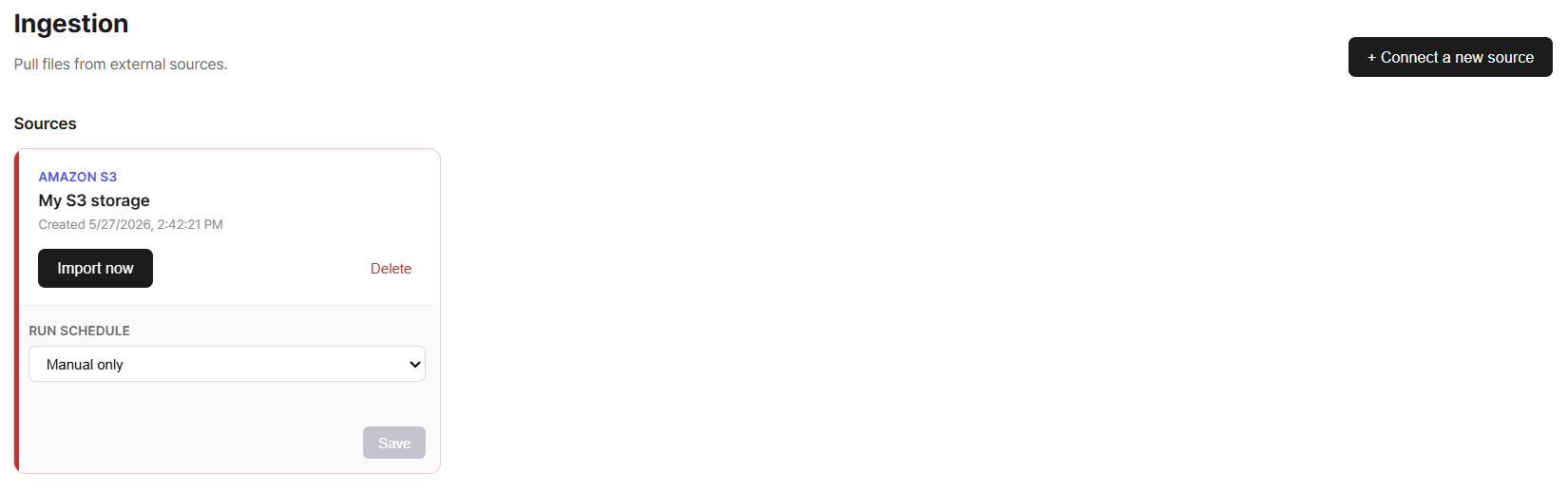

Click Test and save to automatically test that the bucket is accessible. If the test passes, the source is registered.

Connecting S3-Compatible Storage

In addition to Amazon S3, any storage that provides an S3-compatible API can be connected in the same way.

How to Connect

Enter the storage endpoint URL in the Endpoint field when connecting a source.

Storage	Endpoint Example
MinIO (local)	`http://localhost:9000`
NCP Object Storage	`https://kr.object.ncloudstorage.com`
Cloudflare R2	`https://{account_id}.r2.cloudflarestorage.com`

All other fields (Bucket, Region, Access Key ID, Secret Access Key) should be filled with the values provided by the respective storage service.

When an Endpoint is provided, Path Style access is automatically enabled. No additional configuration is needed.

FAQ

For common questions (missing files, re-ingesting modified files, deleting sources, etc.), see the Ingestion Overview.

Connection to the source fails

Verify that the IAM user has the s3:HeadBucket permission.
Double-check that the bucket name and region are correct.
For S3-compatible storage, make sure the Endpoint URL is valid.

I want to ingest a specific folder only

Enter the folder path (e.g., reports/2026/) in the Prefix field to ingest only files under that path. If a scope is large enough to exceed the per-run limit, splitting it into multiple sources by Prefix also reduces the chance of missed files.
